- Two Full-HD cameras: augmented reality guidance for stakeout & measuring from photos
- All-band RTK GNSS receiver with dual cameras & tilt compensation
- Ultimate precision even in challenging conditions & under dense canopies
- RTK: 7 mm + 1 ppm & Tilt compensation: RTK: 2 mm + 0.3 mm/°
- Base & Rover: 915 MHz LoRa + 450 MHz UHF NTRIP
- 16 hours on one charge, Li-Ion battery, USB Type-C charging
- Magnesium alloy body, IP68 rating & operating temperature from -40°C to +65°C
The EMLID Reach RS4 Pro is an all-band RTK GNSS receiver with dual cameras for visual stakeout and remote point capture for faster and safer work. It also features tilt compensation (IMU) that maintains ultimate precision even in challenging conditions and under dense tree canopies. It offers RTK accuracy of 7 mm + 1 ppm, and with tilt compensation achieves 2 mm + 0.3 mm/° precision. Operating as both base and rover, it supports 915 MHz LoRa and 450 MHz UHF NTRIP communication.
Powered by a Li_Ion battery, the RS4 Pro runs up to 16 hours on a single charge, with USB Type_C charging available. Its magnesium alloy body, IP68 dust_ and waterproof rating, and wide operating temperature range from _40 °C to +65 °C make it ideal for harsh field conditions.

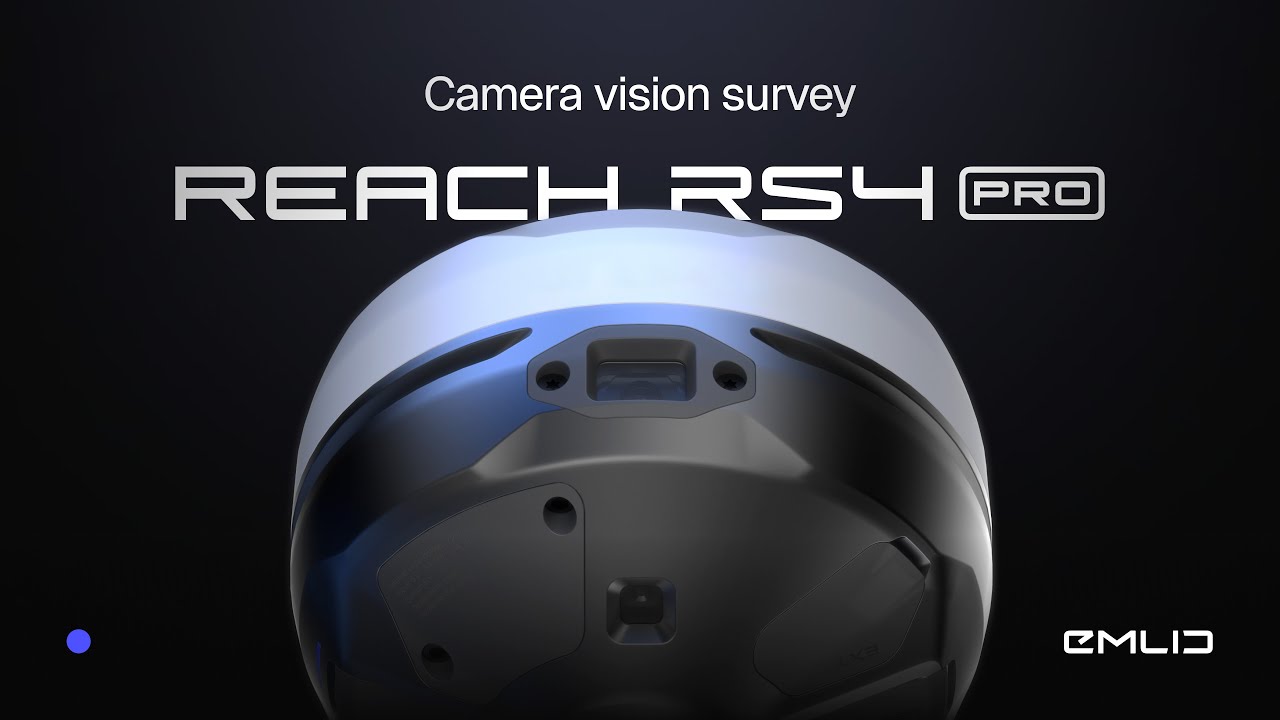

Discover the new way to survey with dual cameras
The Reach RS4 Pro introduces a new way to survey with its dual Full HD cameras, extending capabilities beyond traditional RTK. Stakeout is faster and more intuitive with AR guidance, as your design is overlaid directly on the real world, showing exactly where to place stakes rather than just following a map. Features like dynamic navigation, auto bullseye view, cut & fill indicators, and quick point switching help crews work more efficiently, even on complex construction sites and roadworks.
The RS4 Pro also enables measurement from images, allowing you to capture data from locations where you cannot place the survey pole. Building facades, areas behind fences, across busy roads, over water, past hedges, above pits, and around machinery can all be measured without physical access. This eliminates the need to set up a total station for such tasks and helps avoid hazardous areas.
Unmatched Precision
With 672 channels, the EMLID Reach RS4 Pro can track 40+ satellites at a time from all major constellations (GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC). With support for L1, L2, and the lower L5 and L6 band frequencies, it ensures strong multipath resistance and reliable signal reception. The Reach RS4 Pro thus delivers reliable performance and centimeter-level accuracy with 7 mm + 1 ppm precision in RTK mode. The receiver achieves a fixed RTK solution in less than 5 seconds, providing fast and dependable positioning in the field.
Next-gen tilt compensation
The Reach RS4 Pro comes factory_calibrated, ensuring instant readiness with no need for field adjustments. Its tilt compensation works reliably under all conditions and is immune to magnetic interference, maintaining accuracy even near metal objects. With faster initialisation and no angle limit, it provides precise measurements even at steep tilts. The compensation mechanism activates with just a few moves and remains stable throughout the survey, saving time and avoiding the need for recalibration.
Base and rover connectivity
The Reach RS4 Pro can operate as both base and rover, supporting RTK work with VRS or a single baseline CORS network in RTCM3 format. You can also connect another GNSS receiver as an NTRIP base using EMLID NTRIP Caster. It features a dual_band radio system:
· UHF 450 MHz for transmit and receive, with up to 2 W output (may require a license), compatible with Reach and 3rd_party receivers that support TRIMTALK 450S.
· LoRa 915 MHz for transmit and receive, with up to 1 W output (license_free in North America), compatible with Reach receivers.
Engineered for the harshest environments
The Reach RS4 Pro's magnesium alloy body is both light and exceptionally durable, similar to materials used in aerospace and high-end electronics. This combination ensures strength and ease of handling, even in the toughest environments. With up to 16 hours of continuous operation on a single charge, the RS4 Pro is designed for long field days. It can be recharged via USB-C or powered by a portable power bank for added flexibility.
Thanks to its IP68 rating, the receiver is completely dustproof and waterproof, continuing to operate reliably in rain, snow, or dusty construction sites. Operating temperatures range from -40°C to +65°C, ensuring consistent performance in both extreme cold and intense heat.
Software for every stage of your project
The Reach RS4 Pro includes EMLID Flow, a complete mobile and cloud-based solution compatible with iOS and Android. It keeps your team coordinated and your projects running smoothly while supporting all essential site tasks.
With EMLID Flow, you can coordinate your team by inviting members, sharing projects, and managing access. Monitor field progress directly from the office and exchange data in real time with automatic synchronisation. The unified workflow ensures consistent data, a familiar interface, and no need for additional training.
On site, EMLID Flow enables you to carry out key surveying tasks efficiently:
· Topographic surveys for precise terrain and elevation data
· Stakeout and layout operations for placing points, lines, and markers
· Line and road surveys for staking centerlines and offsets
· Cut and fill calculations for measuring earthworks and stockpiles
· As-built verification to ensure structures match design plans
Technical Specifications:
Imaging
· Image sensors: 1/2.6 in, CMOS, global shutter, Full HD
Field of view:
· Front camera: H: 64.6°, V: 42.8°
· Bottom camera: H: 63°, V: 42°
· Video frame rate: 25 fps
Mechanical
· Dimensions: 128.6 x 128.6 x 99.3 mm
· Weight: 920 g (2.028 lb)
· Operating temperature: -40 to +65 °C (-40 to 149 °F)
· Ingress protection: IP68
Electrical
· Autonomy: 16 hrs as RTK rover with tilt
· Battery: Li-Ion 5000 mAh, 7.2 V, 36 Wh
· Charging: USB Type-C (PD): 5V—3A, 9V—3A, 12V—3A, 15V—3A
Positioning
· Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm
· PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm
· RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm
· Tilt compensation: RTK + 2 mm + 0.3 mm/°
· Convergence time: ~5 s typically
Connectivity
· LoRa radio: up to 1W
· Frequency range: 868/915 MHz
· Power: 0.1 W
· Distance: Up to 8 km
· UHF radio: up to 2W
· Frequency range: 410 - 470 MHz
· Protocols: TRIMTALK 450S
· Modulation type: GMSK
· LTE modem
· Regions: Global
· Bands: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28 TD-LTE: 38, 39, 40, 41 UMTS (UHPS/FDD): 1, 2, 5, 8 Quad-band, 850/1900, 900/1800 MHz
· SIM card: Nano-SIM
· Wi-Fi: 802.11 b/g/n
· Bluetooth: Bluetooth 5.1 (BR/EDR + LE)
· Ports: RS-232, USB Type-C
*Use the correct antenna, LoRa or UHF, for your setup
Data protocols
· Corrections: NTRIP, RTCM3
· Position output: NMEA, LLH/XYZ
· Data logging: RINEX, NMEA, LLH/XYZ, UBX
· Internal storage: 16 GB
GNSS
· Signal tracked: GPS: L1C/A, L2C, L5, GLONASS: L1OF, L2OF, Galileo: E1-B/C, E5a, E6, BeiDou: B1I, B1C, B2a, B3I, QZSS: L1C/A, L1C/B11, L2C, L5, NavIC: L1-SPS Data, L5-SPS
· Number of channels: 672
· Update rates: up to 10 Hz
| Absolute Accuracy: | < 10mm, < 20mm, < 50mm, < 100mm |
|---|---|
| Applications: | BIM, Inspection, Precision agriculture, Research & Development, Surveying |
| Industry: | Agriculture, Authority, Construction industry, Energy grid operator, Forestry, Large industrial plants, Long-distance supply, Military, Mining, Oil and gas, Police, Public utilities, Real estate, Solar systems, Universities, Wind turbines |
| Product type: | GNSS Rover, Sensor, Surveying equipment |
| Relative Accuracy / Resolution: | < 10mm, < 20mm, < 50 mm |
| Surveying tasks: | Basic measurement, Engineering surveying, Plant and building documentation , Plant area inventory, Plant measurement, Site plans & plan bases |
EMLID
Emlid stellt hochpräzise RTK-GNSS-Empfänger und Software für den Außendienst und das Büro her. Emlid Reach-Empfänger sind so konstruiert, dass sie auch unter schwierigen Bedingungen eine zentimetergenaue Positionierung ermöglichen. Sie werden für Vermessung, GIS, Bauwesen, Drohnenkartierung und mehr verwendet. Emlid hat seinen Hauptsitz in Budapest, Ungarn, und vertreibt Reach-Empfänger weltweit über seinen Online-Shop und offizielle Händler.
Hersteller und Verantwortlicher im Sinne des GPSR:
Esztergomi út 31-39. HUB3. ép. 5. em.
Budapest, 1138
Hungary
E-Mail: info@emlid.com
Für weitere Hinweise zum sicheren und legalen Betrieb von Fluggeräten schauen Sie sich bitte unbedingt unsere Hinweise auf folgender Seite an:
https://epotronic.com/Wissen/Gesetze/
Weitere Sicherheitsinformationen zu Drohnen oder Akkus erhalten Sie ebenfalls auf unserer Webseite:
https://epotronic.com/Wissen/
Bitte beachten Sie in jedem Fall die dem Produkt beigefügten oder per QR-Code verlinkten Sicherheitsvorschriften, nachdem Sie das Produkt von uns erhalten haben.
Wir wünschen Ihnen viel Freude und wirtschaftlichen Erfolg mit den Produkten unserer namhaften Hersteller.
Sicherheitshinweise für die Lagerung und Verwendung von Lithium-Akkus:
Lagerungstemperatur
Bewahren Sie Lithium-Akkus an einem kühlen, trockenen Ort auf. Die ideale Lagertemperatur liegt zwischen 15°C und 25°C.
Feuchtigkeit vermeiden
Halten Sie die Akkus fern von Feuchtigkeit und Wasser. Lagern Sie sie in einem trockenen Raum, um Korrosion und Schäden zu vermeiden.
Direkte Sonneneinstrahlung vermeiden
Setzen Sie die Akkus nicht direkter Sonneneinstrahlung aus. Hohe Temperaturen können die Akkus beschädigen und die Lebensdauer verkürzen.
Feuergefahr
Lagern Sie Lithium-Akkus niemals in der Nähe von brennbaren Materialien. Im Falle eines Defekts können sie Feuer fangen.
Beschädigte Akkus entsorgen
Verwenden Sie keine beschädigten oder aufgeblähten Akkus. Entsorgen Sie diese sicher gemäß den lokalen Vorschriften.
Ladegeräte verwenden
Verwenden Sie nur die vom Hersteller empfohlenen Ladegeräte. Falsche Ladegeräte können zu Überhitzung und Schäden führen.
Überladung vermeiden
Laden Sie die Akkus nicht über die empfohlene Kapazität hinaus. Überladung kann zu Überhitzung und im schlimmsten Fall zu einem Brand führen.
Kurzschlüsse vermeiden
Vermeiden Sie Kurzschlüsse, indem Sie die Kontakte der Akkus nicht mit Metallgegenständen in Berührung bringen.
Regelmäßige Überprüfung
Überprüfen Sie die Akkus regelmäßig auf Schäden oder Abnutzung. Ersetzen Sie alte oder beschädigte Akkus rechtzeitig.
Notfallmaßnahmen
Halten Sie geeignete Löschmittel bereit, um im Falle eines Akku-Brandes schnell reagieren zu können. Ein Feuerlöscher für Lithium-Brände ist empfehlenswert.
Entsorgung
Entsorgen Sie Lithium-Akkus nicht im Hausmüll. Bringen Sie sie zu einer Sammelstelle für Batterien oder Elektronikschrott.
1x EMLID Reach RS4 Pro GNSS Receiver
1x Carrying Case
1x USB Type-C Cable
1x LoRa Antenna 860-930 MHz
1x UHF Antenna 410-470 MHz
