€199.90
Available, delivery time: 2-4 days
- Charges up to three Matrice 4 batteries simultaneously in just 1 hour 50 minutes for uninterrupted missions
- 1.5-inch IPS LCD clearly shows charging parameters, mode selections, and updates for easy use
- Three smart charging modes to extend battery life: 60% storage, full charge, and quiet silent mode
- Three charging ports up to 180W and USB-C up to 36W for simultaneous charging of remote and devices
- Protection features OTP, OVP, OCP, SCP, UVP, and OPP plus smart temperature control ensure maximum safety.
Description
The LKTOP 200W three-way smart charger for DJI Matrice 4 batteries allows simultaneous charging of three intelligent flight batteries and a remote control via USB-C. With a maximum output power of up to 200W, it provides an efficient and smart charging experience, supports three charging modes, and features active cooling. Firmware can be updated via a mobile app for the latest features.
Features
- Fast charging: The Matrice 4 charging hub charges up to three batteries simultaneously in just 1 hour and 50 minutes, ensuring rapid energy recovery for uninterrupted flights.
- LCD display: The high-contrast 1.5-inch IPS wide-angle display keeps all charging parameters, mode selections, battery information, and OTA update progress clearly visible for an especially user-friendly operation.
- Flexible charging modes: Three intelligent charging modes are available for different scenarios and optimal maintenance: 60% storage mode for battery preservation, 100% full charge mode, and silent mode with reduced fan speed.
- Versatile ports: Three charging ports support up to 180 watts per channel and are compatible with multiple battery types. The USB-C port delivers up to 36 watts and allows simultaneous charging of remote controller, camera, or smartphone.
- Intelligent safety: The efficient ventilation system with smart temperature control ensures optimal heat dissipation, while dedicated protection features for overheating, overvoltage, overcurrent, short circuit, undervoltage, and overload provide a secure charging process for all connected devices.
Technical Specifications
· Supported battery types: DJI Matrice 4 series (2S battery = 2 cells in series, approx. 7.4 V nominal voltage; 4S battery = 4 cells in series, approx. 14.8 V nominal voltage)
· Input Voltage: 100-240V, 2.5A, 50-60Hz
· Maximum Charging Power: 180W per single battery, 200W for multiple batteries
· USB-C Output: 5V3A, 9V3A, 12V3A, 15V2.4A, 20V1.8A, max 36W
· Operating Temperature Range: 5 - 40 °C
· Dimensions (W x D x H): approx. 138 x 64 x 52 mm
· Weight: 380 g (without cable)
· Display: 1.5-inch IPS wide viewing angle screen
· Charging Modes: Full charge, Silent mode (max 100W), Storage mode (~60% charge)
· Additional Features: Firmware updates via app, intelligent power allocation, built-in cooling fan
Charging Times (using DJI Matrice 4 batteries as example):
· 1 battery: approx. 56 minutes
· 2 batteries: approx. 95 minutes
· 3 batteries: approx. 110 minutes
| Accessories: | Chargers |
|---|---|
| Product type: | Accessories (drones) |

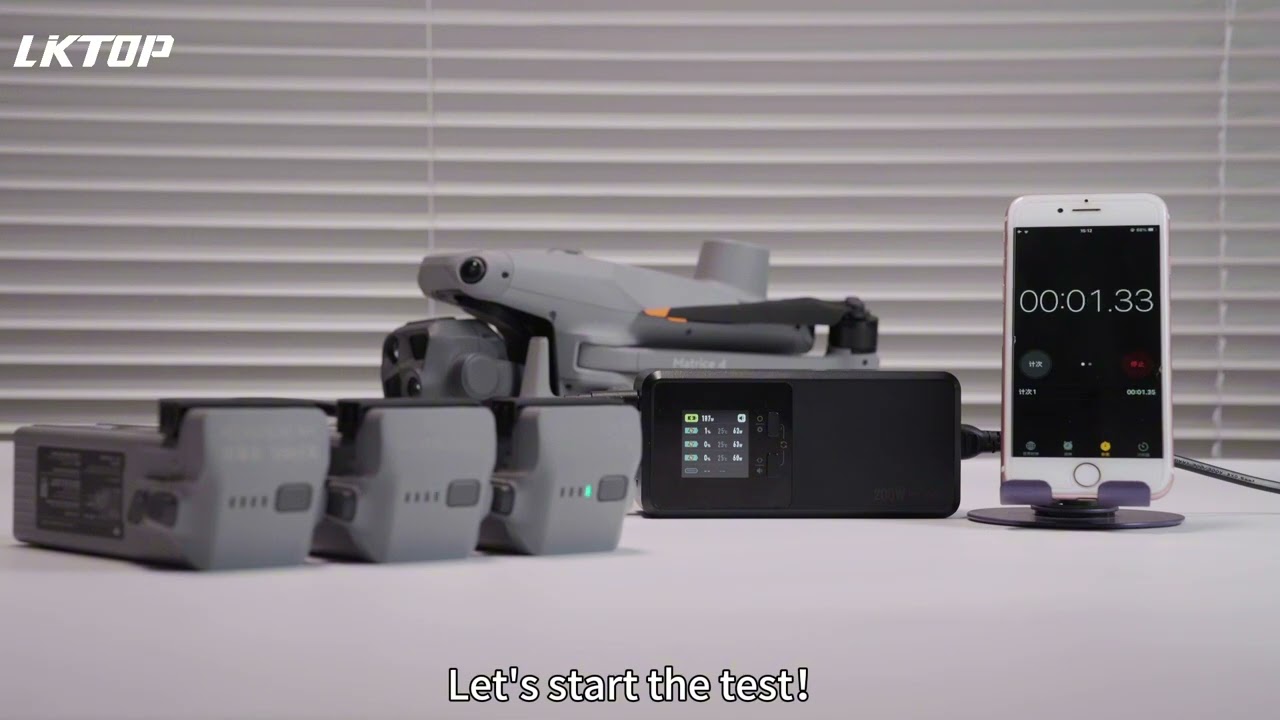

Video 1
Documents 1
Delivery content
1x Charger for DJI Matrice 4 Series Batteries
1x AC power cable
3x Charging Cable for Matrice 4 Series Batteries
1x Charging Cable USB-C to USB-C
1x Instruction manual
